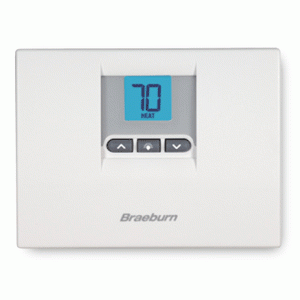

Braeburn Model 1010 1 Heat/1 Cool Non-Programmable Hardwired Thermostat

Braeburn Model 1010 1 Heat/1 Cool Non-Programmable Hardwired Thermostat

About This Thermostat

MFG: Braeburn
MFG#: 1010
Our#: 172293
Programmable: No
System Compatibility: Single Stage
Power Options: 24 VAC Hardwire
Heat/Cool Changeover: Manual
Programmable Fan: No
Temperature Limits: No
Keypad Lockout: No
Backlight: Yes
Vacation Hold: No

NO LONGER AVAILABLE - SEE MODEL 1000

Braeburn Model 1010 1 Heat/1 Cool Non-Programmable Hardwired Thermostat.  This thermostat requires 24VAC Common Wire.  Does not run on batteries.

The digital non-programmable thermostat shall be a BraeburnŽ, model number 1010, 3.75" high x 4.94" wide x 1.19" deep, powered by 24 Volt AC. The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pump systems. The thermostat shall have a bright blue backlight display, front loading battery door and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings. A front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.

FEATURES:

. Bright Blue Display Backlight
. Easy Access Front Battery Door
. Battery Powered with Latching Relay Output
. Separate O & B Terminals
. Compressor Short Cycle Protection
. Adjustable Temperature Differential
. ESD GuardT Electronic Circuitry
. Low Temperature "Freeze" Protection
. Front Access Reset Button
. F° / C° Switch
. Gas / Electric Fan Switch
. Mount to Horizontal Box

SPECIFICATIONS:

Dimensions: 3.75" x 4.94" x 1.19"
Electric Rating: 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
2 amp total maximum load (all terminals)
AC Power: 18-30 Volt AC
Compatibility: Single stage gas, oil or electric systems
Single stage heat pump systems
Control Range: 45° to 90° F (7° to 32° C)
Display Range: 40° to 99° F (4° to 37° C)
Accuracy: +/- 1° F (+/- .5° C)
Temperature
Differential: .5°, 1°, or 2° F (.25°, .5°, or 1° C)
Storage Temperature: 14° to 140° F (-10° to 60° C)
Operating Humidity: 5% to 95% Relative Humidity
Interchangeable
Sub-Base: Braeburn 2010 Programmable
1 Heat / 1 Cool
Terminations: R, O, B, C, Y, W, G
