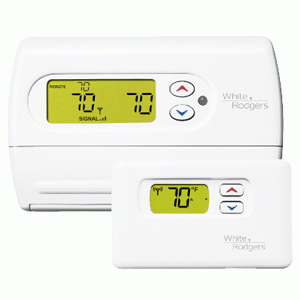

White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit

White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit

About This Thermostat

MFG: White-Rodgers
MFG#: 1F85RF-275
Our#: 171674
Programmable: Yes (5+1+1 or non-programmable)
Stages: 3H & 2C
System Compatibility: Heat Pump, Multi-Stage, Single Stage
Power Options: 24 VAC Hardwire, Power-Stealing
Heat/Cool Changeover: Automatic or Manual
Programmable Fan: No
Temperature Limits: No
Keypad Lockout: Yes
Backlight: Yes
Vacation Hold: No

1F85RF-275 Thermostat and Wireless Remote Sensor Kit.

3 Heat / 2 Cool.  Solve temperature problems quickly with the 1F85RF-275 thermostat kit. A wireless RF remote sensor may be placed upstairs, downstairs or in a sunroom to eliminate hot and coldspots. With no sensor wires to pull, each installation is between 30 and 60 minutes faster. Plus, it's the only wireless system that offers temperature control right at the remote sensor to ensure comfort at every level.

Wireless remote sensor - sense and control temperature anywhere it's needed - upstairs, downstairs, or remote rooms - choice of optimum temperature sensing for the application- choose weighted or averageing temperature control.  Room temperature can be raised or lowered 4 degrees from the remote sensor.

FEATURES:


WIRELESS REMOTE SENSOR:
Battery monitor
Two+ year battery life for transmitter
Lighted display
60,000+ serialized codes for transmitter/receiver combinations
10 user selectable radio freq. channels
Remote temporary override capability from 0 to 8 hours (4 hour default) +/- 4
Keypad lockout
Includes 2 "AAA" batteries

THERMOSTAT
Programming
Choice of 5/1/1 day programmable or non-programmable 4 time and 4 temperature settings per program (heat & cool)
Energy savings up to 33%
Patented pre-programmed software simplifies time and temperature programming

Display
Lighted display for easier low-light viewing
Comfort & Convenience
Optional minimum and maximum temperature configurable
Auto Changeover (optional)
Permanent program retention during power loss, no batteries needed
Indefinite setpoint Hold or programmable timed Hold up to 8 hours
Air filter change indicator
Simple "set-up" menu to activate optional features
Programmed temporary temperature override 2 hours or until next program period
Maintains room temperature differential within +/- 1
Display temperature recalibration (+/- 4)
Includes 2 "AA" alkaline batteries for long battery life

Performance
Universal - Single Stage, Multi-Stage or Heat Pump
Dual Powered (Hardwire and Power Stealing)
Coded keypad lockout
Selectable Energy Management Recovery
Meets ENERGY STAR specifications
Meets California Building Code, Title 24
Fast (FA) or slow (SL) heating cycle anticipation
Compressor lockout protection (optional)
Setpoint temperature limits
Wireless Features
Wireless temperature sensing inside and outside
Temperature averaging/weighing by program period remote and local
Indicator icons for successful communication status
Wireless range up to 200 feet

SPECIFICATIONS:
Electrical Specifications
Rating
20 to 30 VAC, 50/60 Hz or DC
0.05 to 1.5 Amp (load per terminal)
2.5 Amps maximum load (all terminals combined)
Standard Systems
Multi-Stage-2 stage heat, 2 stage cool
Heat Pump-up to 3 stage heat, and 2 stage cool
Single stage gas, oil, electric

Thermal Specifications
Setpoint Temperature Range:
45 to 90F (7 to 32C)
Rated Differential:
0.6 to 1.6F with adjustable anticipation
Operating Ambient Temperature:
32 to 105F (0 to 40C)
Operating Humidity Range:
90% non-condensing maximum
Shipping Temperature Range:
-4 to 150F (-20 to 65C)

Dimensions
Thermostat - 6.1"W x 3.8"H x 1.75"D
Sensor - 4.2"W x 2.6"H x 0.8"D

REVIEW SNAPSHOT®

by PowerReviews
White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit

4.3

(based on 11 reviews)

100%

of respondents would recommend this to a friend.

Pros

  • Easy to install (10)
  • Easy to adjust (9)
  • Simple controls (8)
  • Intuitive controls (4)

Cons

    Best Uses

    • Home (8)
    • Central controls (4)
    • Large rooms (4)
      • Reviewer Profile:
      • Homeowner (8), Avid do-it-yourselfer (4)

    Reviewed by 11 customers

    Sort by

    Displaying reviews 1-10

    Back to top

    Previous | Next »

    (2 of 2 customers found this review helpful)


    4.0

    Good thermostat

    By cmkAZ

    from Phoenix, AZ

    About Me Homeowner

    Verified Buyer

    Pros

    • Easy To Adjust
    • Easy To Install
    • Precise Controls

    Cons

      Best Uses

      • Central Controls
      • Homes
      • Large Rooms

      Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

      I found this thermostat to be easy to install, however programming the thermostat is a little bit time consuming. But once it was up and running, it works great and has helped to reduce our A/C bill. The only thing that I wish it had was a button to turn on a back-light on the display to read the temperature in the dark.


      4.0

      Excellent, with minor issues

      By Old Rick

      from Portland

      About Me Handyman, Homeowner

      Verified Buyer

      Pros

      • Easy To Adjust
      • Easy To Install
      • Precise Controls

      Cons

      • Hard To Read Display

      Best Uses

      • Homes
      • Two-story homes

      Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

      This is a really nice product, and keeps my upstairs bedroom much more comfortable.

      However, it has a flaw: the main thermostat can be programmed to pay more attention to the remote during part of the day, and the main thermostat at other times, but it cannot be programmed to completely ignore the remote part of the time, and use it during other periods. This means that the temperature in my bedroom has quite a bit of influence on the downstairs temp. even when you would prefer to ignore the upstairs bedroom temp. during the day.

      As a product improvement, I would like to be able to program it to ignore the remote (or the local) sensor entirely, part of the time. As it is, you can turn the remote (or local) sensor off entirely, but not as a programmed function.

      Two other issues:
      - The Outside Sensor described in the advertising and the user manual does not exist, and cannot be purchased.

      - The thermostat seems to lose its setpoint occasionally - it will display 75 as the set-point, when the programmed period is set to 74, and it requires a complete reset to correct it and re-program everything. This takes about 15 minutes, and is a serious error-prone pain in the neck.


      5.0

      excellent product

      By Big BKF

      from DENHAM SPRINGS, LA

      About Me Handyman, Homeowner

      Verified Buyer

      Pros

      • Easy To Adjust
      • Easy To Install
      • Intuitive Controls
      • Precise Controls

      Cons

        Best Uses

        • Central Controls
        • Homes
        • Large Rooms
        • Offices
        • Small Rooms

        Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

        Was having a problem with competing thermostats - one side of house was always cold and one side was always hot and when you moved the thermostats temperature the situation would reverse...this solved the problem...just bring the remote thermostat wherever you want it to be that temperature and problem solved...I will probably eventually permenantly mount the remote sensors...but for now I am happy...I guess the other solution would have been to move teh hard wired thermostats...but this sure was quick adn easy and relatively inexpensive...


        3.0

        seemed easy to install

        By D the man

        from Houston,TX

        About Me Homeowner

        Verified Buyer

        Pros

        • Easy To Install

        Cons

          Best Uses

          • Homes

          Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

          Easy to install. Total time about 2 hrs. Took 30 to 45 minutes then another 1 1/2 hrs to configure/test. Overall, not hard to install. I just installed it, so no comment on the how it works.

          (1 of 1 customers found this review helpful)


          4.0

          Great product!

          By Hardwarejunky

          from Covina, Ca

          About Me Handyman, Homeowner

          Verified Buyer

          Pros

          • Easy To Adjust
          • Easy To Install

          Cons

            Best Uses

            • Central Controls
            • Remote Rooms

            Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

            The product works great for situations where you spend most of your time, and the thermostat is no where near. Our masterbedroom is lower then the rest of the house, and the thermostat is up higher. Leaving the master bedroom much colder then the rest of the house. By installing the remote sensor in the master bedroom, we are not able to keep the master bedroom at the temperature we want with no problems.


            4.0

            So far so good

            By JR in KS

            from Olathe, KS

            About Me Homeowner

            Verified Buyer

            Pros

            • Easy To Adjust
            • Easy To Install
            • Intuitive Controls

            Cons

              Best Uses

              • Homes
              • Large Rooms

              Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

              Installed with a multi-stage heat pump and multi-zone system. Thermostat installed for only one zone (2nd floor with bedrooms, where the temp in one room was always different from room with existing thermostat). Installation was pretty straight forward, only hiccup was the power connection (old unit was power stealing, but wiring was available for direct power for this unit). Program working for one day / night, so far so good. We'll see how things work when it is time for the AC.


              5.0

              I would by again and recommend to ALL!

              By Travis A.

              from Newnan, GA

              About Me Homeowner

              Verified Buyer

              Pros

              • Easy To Adjust
              • Easy To Install
              • Intuitive Controls
              • Precise Controls

              Cons

                Best Uses

                • Central Controls
                • Homes
                • Large Rooms
                • Offices
                • Small Rooms

                Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

                This product performs exactly as advertised. We were having trouble regulating the temperature in my daughter's room. It was hard for me to sleep knowing that she might be uncomfortable. I can honestly say that I have slept much better every night since installing this new thermostat.

                I will caution that at random times the thermostat will run on default programming which is a little cool from my comfort. However, I believe that it may be caused by power surges from my home rather than the internal operation of the thermostat. A good surge protector should solve this problem.

                Service and delivery comments:

                Delivery was promt and in great condition.
                I also had to call customer service to confirm my wiring configuration and they were extremely helpful, courteous, and fast.

                (3 of 6 customers found this review helpful)


                4.0

                Solid product - obscure directions

                By Walt Works

                from Portland, OR

                About Me Handyman

                Verified Buyer

                Pros

                • Easy To Install
                • Precise Controls

                Cons

                • Complex setup
                • Confusing directions

                Best Uses

                • Older two-story homes

                Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

                A good product with clear display, easy physical installation, & complex, but reasonably easily mastered programming. One feature I appreciated was the ability of the base and remote to re-link automatically after a power shut down and re-start at the panel.

                The big problem is with the set-up instructions. They can be more that a little confusing and require constant shifting referral from section to section to complete the set-up process. Once it's done you're home free, but it can take a while and concentrated diligence to get there.

                I am comfortable recommending and would buy again to use for the same type of install. To wit, a two-story building with an old mercury thermostat in a bad location downstairs causing ongoing and bothersome temp differential between floors.

                (5 of 6 customers found this review helpful)


                4.0

                Very functional, but not user friendly.

                By Staying Cool

                from Central Florida, USA

                Verified Buyer

                Pros

                • Easy And Discreet Display
                • Easy To Adjust
                • Easy To Install
                • Not Too Flashy
                • Only A Few Buttons
                • Precise Controls

                Cons

                • Confusing Controls
                • Hard To Navigate
                • NOT User Friendly
                • Transmissions Seem Slow

                Best Uses

                  Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

                  Overall, this is a nice thermostat. The build quality seems to be solid, and has been functioning as it should. The appearance is similar to the basic White-Rodgers thermostat that it is replacing, with the exception of additional on-screen displays. The remote sensor and the programmability, along with it's compatibility to our system are what influenced our decision to buy this model.Even though the thermostat options are awkward (to say the least) to adjust, it gets the job done. Other manufacturers seems to be going in the direction of larger display, touch-screen, etc, type of thermostats, and I can clearly see why. User friendliness.To be quite honest, due to the relative difficulty in using this thermostat's menu, I've really procrastinated in learning EVERY feature that it may have to offer. I've had it for a month or so.Not much good to say about the instruction book, but the manufacturer help-line seems to have knowledgeable staff. Wonderful service from [@] / National Trade Supply!

                  Service and delivery comments:

                  Ordering this product was very easy. After using iaqsource.com and speaking to iaqsource customer service, I felt confident that I was getting the correct product for the best possible price.

                  My thermostat arrived on the day I was told it would, and was packaged very well. Regardless, I sure do hope that the delivery company was careful with it!

                  Everything is "A++" so far!

                  (4 of 4 customers found this review helpful)


                  5.0

                  Great instructions - in English

                  By Trying to save on Electricity

                  from North Richland Hills, Texas

                  About Me Homeowner

                  Verified Buyer

                  Pros

                  • Easy To Adjust
                  • Easy To Install
                  • Intuitive Controls
                  • Precise Controls

                  Cons

                    Best Uses

                    • Homes

                    Comments about White-Rodgers 1F85RF-275 Thermostat and Wireless Remote Sensor Kit:

                    My non-movable thermostat was in a hall way that was always hotter than the adjacent rooms. Now, with a movable sensor, I'm not trying to cool off the hallway, only the rooms - much more comfortable and cheaper.
