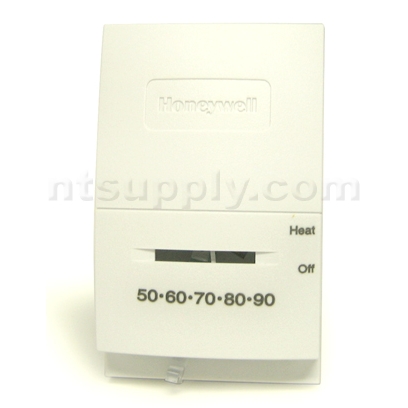

Honeywell Mercury Free Heat -Only Econostat - DC and Milivolt
Honeywell Mercury Free Heat -Only Econostat - DC and Milivolt
About This Thermostat
| MFG: | Honeywell |
| MFG#: | T827K1009 |
| Our#: | 111255 |
| Programmable: | No |
| Stages: | 1 Heat |
| System Compatibility: | Heat Only, Millivolt |
| Heat/Cool Changeover: | Manual |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | No |
| Vacation Hold: | No |
Affordable heating thermostats provides control of millivoltage, 12 Vdc, will not control 24VAC Heating systems.
Features
. Coiled bimetal element operates snap-acting switch.
. Temperature setting lever on bottom of thermostat.
. Mount using two screws through base to wall or vertical outlet box.
. Large numbers on faceplate for easy adjustment.
. Temperature setting and thermometer scale on cover.
. Temperature setting lever on bottom of thermostat cover scale.
. Mounts using two screws through base to wall or outlet box.
. Large numbers on faceplate for easy adjustment.
Specifications:
Description - Mercury Free Heat Only Thermostat with Positive Off for control of single stage low voltage heating systems
Application - Heat Only
Mounting - Vertical
Color - Premier WhiteŽ
Stages - 1 Heat
Terminal Designations - R, W
Switch Positions (System) - HEAT-OFF
Switch Type - Snap action
Switching Action - SPST
Accuracy (F) - 2 F
Accuracy (C) - 1 C
Dimensions (in.) - 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
Dimensions (mm) - 121 mm high x 73 mm wide x 35 mm deep
Setting Temperature Range (F) - 50 F to 90 F
Sensor Element - Bimetal
Voltage - 12 Vdc; 750 mV
Features
. Coiled bimetal element operates snap-acting switch.
. Temperature setting lever on bottom of thermostat.
. Mount using two screws through base to wall or vertical outlet box.
. Large numbers on faceplate for easy adjustment.
. Temperature setting and thermometer scale on cover.
. Temperature setting lever on bottom of thermostat cover scale.
. Mounts using two screws through base to wall or outlet box.
. Large numbers on faceplate for easy adjustment.
Specifications:
Description - Mercury Free Heat Only Thermostat with Positive Off for control of single stage low voltage heating systems
Application - Heat Only
Mounting - Vertical
Color - Premier WhiteŽ
Stages - 1 Heat
Terminal Designations - R, W
Switch Positions (System) - HEAT-OFF
Switch Type - Snap action
Switching Action - SPST
Accuracy (F) - 2 F
Accuracy (C) - 1 C
Dimensions (in.) - 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
Dimensions (mm) - 121 mm high x 73 mm wide x 35 mm deep
Setting Temperature Range (F) - 50 F to 90 F
Sensor Element - Bimetal
Voltage - 12 Vdc; 750 mV
