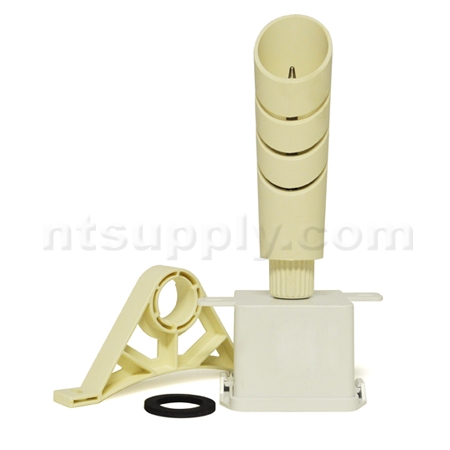

Proliphix PTS-OS3 Standard Outdoor Thermal Sensor

Proliphix PTS-OS3 Standard Outdoor Thermal Sensor

About This Product

MFG:	Proliphix
MFG#:	PTS-OS3
Our#:	110250

Question & Answer

The Model PTS-OS3 Standard Outdoor Thermistor Sensor is very economical, with an accuracy of +/-0.5oF (0.28oC) and is compatible with the NT20e or NT120e/h Network Thermostats. The mounting design is based on proven techniques for installation efficiency with a stainless steel probe for durability. The sensor comes with a three year warranty and is made with the highest quality material which offers high reliability.

FEATURES

Economical
Durable plastic enclosure (NEMA 3R)
Three-year warranty
+/-0.5oF (0.28oC) accuracy

APPLICATION

The PTS-OS3 can be used for outside air temperature sensing. The design allows for two-point mounting and 1.5in wall separation for more accurate performance. The weather shield protects the stainless steel probe from the effects of rain, sleet, and snow.

SPECIFICATIONS

Sensing Element Thermistor (thermal resistor)
Accuracy +/-0.5oF (0.28oC)
Temp Range -30oF to 230oF (34 to 110oC)
Temp Response NTC -Thermistor
Thermistor Stability 0.24oF (0.13oC) over 5 years
Connection 18" (46cm) 24 AWG pigtails
Mounting Directly to wall
Probe 304 Stainless Steel
Enclosure Plastic, NEMA 3R
Color White

REVIEW SNAPSHOT®

by PowerReviews

Proliphix PTS-OS3 Standard Outdoor Thermal Sensor

4.0

(based on 1 review)

Reviewed by 1 customer

Displaying review 1

12/27/2010

4.0

Worked as described

By Roy

from Stateline, NV

About Me Homeowner

Pros

Cons

Best Uses

Comments about Proliphix PTS-OS3 Standard Outdoor Thermal Sensor:

Attaches well to side of home using 2 (not included) screws. I soldered leads to wire from thermostat.
It is much larger than I imagined and is not discreet. This was OK for my usage, but may not suit everyone. Take a look at the dimensions before purchasing.
It is 3 degrees off with my wiring setup. Proliphix allows an offset which I used.

Displaying review 1

REVIEW SNAPSHOT®

by PowerReviews

Proliphix PTS-OS3 Standard Outdoor Thermal Sensor

4.0

(based on 1 review)

Reviewed by 1 customer

Displaying review 1

12/27/2010

4.0

Worked as described

By Roy

from Stateline, NV

About Me Homeowner

Pros

Cons

Best Uses

Comments about Proliphix PTS-OS3 Standard Outdoor Thermal Sensor:

Attaches well to side of home using 2 (not included) screws. I soldered leads to wire from thermostat.
It is much larger than I imagined and is not discreet. This was OK for my usage, but may not suit everyone. Take a look at the dimensions before purchasing.
It is 3 degrees off with my wiring setup. Proliphix allows an offset which I used.
