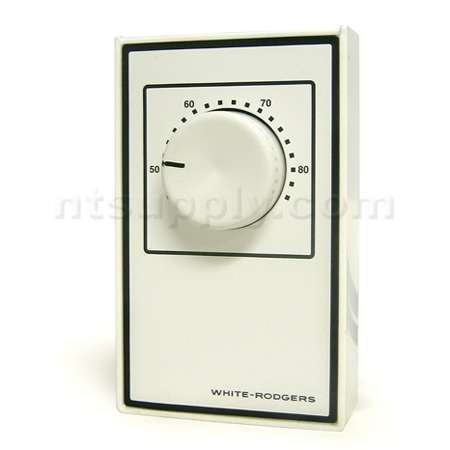

White-Rodgers 1A65W-641 Line Voltage Heat Only Thermostat, White
About This Thermostat
|System Compatibility:||Line Voltage, Heat Only|
The Type 1A65 Electric Heat Thermostat is designed for use on all types of electrical heating installations such as cable heat, baseboards, wall insert heaters, etc. Its narrow operating differential and the ability of its
fully exposed knob to sense both radiant heat and room air temperature make this control ideal for use on such installations.
Dial Setting: Knob may be set anywhere between 40° and 85°F by simply turning knob so that indicator on knob points to the desired setting.
. This is a Single-Pole disconnect model.
. White Color
Switch Rating: Non-Inductive
22A (2500W) 120 VAC
22A (5000W) 240 VAC
18A (5000W) 277 VAC
Temperature Range: 40° to 85°F
Switch Action: Open on rise
Contact Structure: SPST
Dimensions - 4-1/2"H x 2-3/4"W x 1-1/4"D
