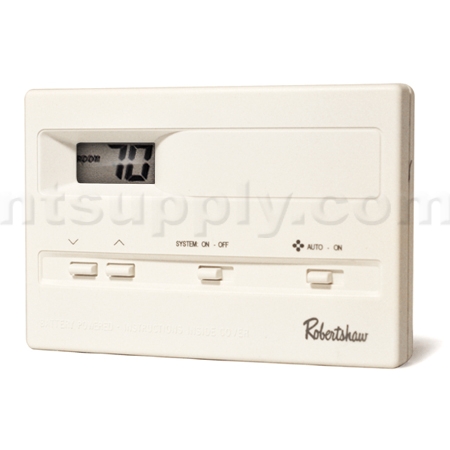

Robertshaw 9505 Non-Programmable Heat Only Thermostat
About This Thermostat
|System Compatibility:||Millivolt, Heat Only|
Robert Shaw 9505 white electronic non-programmable thermostat.
The 9500 Series is the clear alternative to traditional mechanical thermostats. This modern design provides attractive and consistent temperature control. Reading the temperature is easy and accurate with our large LCD display. The 9500 and 9505 feature low temperature protection, which will automatically turn on the heat if the indoor temperature goes below 40°F. All models feature an adjustable temperature differential to meet customer specific preferences. Because we believe in the quality of our products, we offer immediate
assistance for consumers with product questions. Our toll-free technical assistance number is printed right on the thermostat.
. Heat - Only
. Compatible with most standard 24 VAC or millivolt heating systems
. Positive-off switch
. The 9505 features low temperature protection, which will automatically turn on the heat if the indoor temperature goes below 40ºF.
. High / low temperature protection.
. AUTO-ON fan switch.
. Zoning systems compatible.
. Includes two AA alkaline batteries.
. Millivolt heating system compatible 250mV-750mV.
. Quick wiring terminal block (three position).
Terminals - Rh, W, G
Temperature Setpoint Range - 45 - 90 Degrees F
Voltage - 24 Volt AC (18-30 VAC), 50 or 60 Hz
Current - 1 amp max. load per terminal
Dimensions - 5-1/2" W X 3-3/4" W X 1-1/4"D
