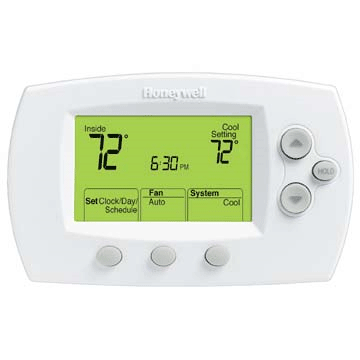

Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen
About This Thermostat
| MFG: | Honeywell |
| MFG#: | TH6110D1005 |
| Our#: | 100928 |
| Programmable: | Yes (5+1+1 or 5+2) |
| Stages: | 1H & 1C |
| System Compatibility: | Single Stage, Heat Only, Millivolt |
| Power Options: | Battery, 24 VAC Hardwire |
| Heat/Cool Changeover: | Automatic or Manual |
| Programmable Fan: | No |
| Temperature Limits: | Yes |
| Keypad Lockout: | No |
| Backlight: | Yes |
| Vacation Hold: | No |
The FocusPRO™ programmable thermostat provides electronic control of 24 Vac conventional and heat pump systems or 750 mV heating systems. If used as directed, programmable thermostats can save up to 33% on annual heating and cooling costs. Savings may vary depending on geographic region and usage.
FEATURES:
• Weekday/Weekend programming - use as a 5-1-1 (Weekdays, Saturday, Sunday) or 5-2 (Weekdays, Weekend) programmable thermostat, whichever best fits your lifestyle.
• Large, clear, backlit display - easy to read in various lighting conditions.
• Display size options - available in large screen or standard.
• Precise comfort control (+/- 1º F) - maintains consistent comfort to the highest level of accuracy.
• Simplified programming and operation.
• Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat.
• Built in instructions - simple, pull out instruction manual.
• Energy savings - program to save up to 33%* on annual heating and cooling costs.
• Adaptive Intelligent Recovery™ - ensures programmed temperature is reached by programmed time.
• Temperature range stops - prevents user from setting the temperature too high or too low.
• 5-year limited warranty.
SPECIFICATIONS:
Application - Conventional and Heat Pump systems
Programmability - 5-1-1 Day Program
Changeover - Auto/Manual Selectable
Color Premier White®
Switch Positions (System) HEAT-OFF-COOL-AUTO
Switch Positions (Fan) AUTO-ON
Power Method Battery or Hardwired
Terminal Designations Rc, R, W (O/B), Y, G, C
Dimensions (in.) 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
Dimensions (mm) 91 mm High X 147 mm Wide X 38 mm Deep
Mounting Horizontal
Frequency 50 Hz
Frequency 60 Hz
Operating Temperature Range (F) 32 F to 120 F
Operating Temperature Range (C) 0 C to 48.9 C
Setting Temperature Range (F) Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C) Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Differential Temperature (F) ± 1 F
Differential Temperature (C) ±0.5 C
Stages Up to 1 Heat/1 Cool
Sensor Element Thermistor
Heat Current 0.02 A to 1.0 A running
Cool Current 0.02 A to 1.0 A running
Fan Current 0.02 A to 0.5 A running
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Comments Standard Display
Display Size 3.75 sq. in.
Voltage 20 to 30 Vac or 750 mV
Related Products & Accessories
|
Honeywell Medium/Large Wall Plate (FocusPro 5000/6000 series)
|
$12.00
|
Customers most agreed on the following attributes:
from Seattle, WA on 1/25/2010Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
I install 4 in my rental units with 4 zone. Easy to program and love the locking feature as I pay utility costs in rantal. I had a hard time installing - have a two wire system and the instruction were not very clear exacty where to put wires. Went online and found better instructions. Hit R +red and W=white. Why did bokklet way that. Otherwise love it.
from Wisconsin on 1/2/2010Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
East to install. Improves the temperature stability of the house.
from Wakefield, MA on 11/16/2009Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
I used this thermostat to replace some old analog ones (used for heat only). At first, I was tentative about the installation, but found it very easy to install, if I can do it anyone can.
from Watertown, MA on 11/12/2009Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
This product is slightly easier to install and also much easier to read, adjust/control temperature than my previous Rite Temp thermostat.
from mpls mn on 10/26/2009Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
i hooked it up for my gravity furnace in my own unit, and it works pretty well. hooking it up was pretty easy, i stuck with battery power so just two wires for my system and that was it. programming was pretty easy too. it did what is says it does... i am unsure if my tenants would figure out how to change the heat limits or not, hopefully not. at least they are they if i ever want to try to use them...
from Lawrence, Ma. on 6/1/2009Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
Five stars says it all!
from Chester, SC on 5/11/2009Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
Replaced a Carrier T'stat that was very hard to program.
from chicago,il on 11/25/2008Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
so easy to install i could do it. keeps temperature where you want it simple.
from Woodbridge Va on 4/11/2008Comments about Honeywell FocusPRO 6000 Programmable 1 Heat/1 Cool Thermostat, Small Screen:
works great easy to use!!
