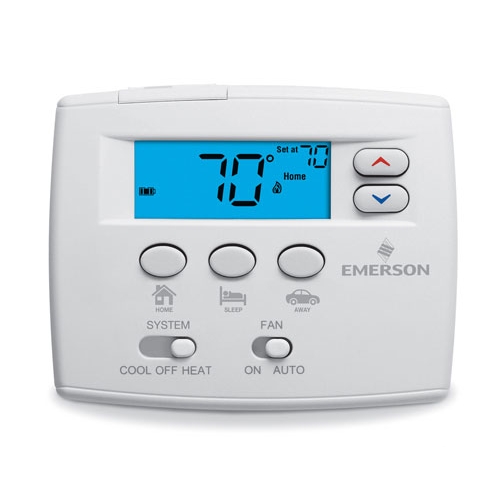

White-Rodgers Easy Set Thermostat - 1F86EZ-0251

White-Rodgers Easy Set Thermostat - 1F86EZ-0251

About This Thermostat

MFG: White-Rodgers
MFG#: 1F86EZ-0251
Our#: 176744
Programmable: No
Stages: 1H & 1C
System Compatibility: Single Stage, Millivolt
Power Options: Battery, 24 VAC Hardwire
Heat/Cool Changeover: Manual
Programmable Fan: No
Temperature Limits: No
Keypad Lockout: No
Backlight: Yes
Vacation Hold: No

White-Rodgers Easy Set Thermostat - 1F86EZ-0251 - Non-Programmable with 3 Temperature Presets: Home - Sleep - Away

The Easy Set is designed to be the easiest thermostat you have ever used. This thermostat features Home, Sleep, and Away temperature pre-sets. Just press the button and go. Included with the easy set is the same temperature accuracy and reliability you expect from all the Emerson Blue thermostats.

How to use the Easy Set Thermostat:
You can set your (Home, Sleep, Away) temperatures for use when you get home, go to sleep, or leave home. Then, just press the button you want and go.  You can use factory pre-sets or change to different temperature pre-sets.  Factory presets are:
HOME - 70 F Heating / 75 F Cooling
SLEEP - 62 F Heating / 78 F Cooling
AWAY - 62 F Heating / 83 F Cooling


FEATURES:
  • 2-square-inch BlueT display with easy-to-see characters
  • Easy-to-read LCD with improved contrast
  • Lighted display for easier low-light viewing
  • Exclusive Cool SavingsT feature saves energy during peak A/C demand periods
  • Long battery life - uses 2 "AA" alkaline batteries (included)
  • Battery power monitor
  • Exclusive sleep timer
  • Permanent pre-set retention during power loss
  • Permanent Hold
  • Simple "setup" menu to activate optional features
  • Temporary sleep timer
  • Soft-touch keypad
  • Display temperature recalibration (+/- 4)
  • Easy access battery compartment
  • Dual-Powered.choice of battery-powered or hardwired, for all applications
  • Fast (FA) or slow (SL) heating cycle anticipation
  • Easy-to-wire push-connect color coded terminals
  • Compressor lockout protection
  • Electric heat option
  • 5-year warranty

System Compatibility:
Single Stage gas, oil, electric
Single Stage heat pump
Millivolt Systems
Will not control 3-wire hydronic heating or 120/240 Volt heating

SPECIFICATIONS:
Dimensions - 4.8"W x 3.8"H x 1.5"D
0 to 30 VAC, 50/60 Hz or DC
0.05 to 1.5 Amps (load per terminal)
1.5 Amps maximum load (all terminals combined)
Setpoint Temperature Range: 45 to 90 F (7 to 32 C)
BlueT 2" Series Rated Differential: 0.6 to 1.7 F with adjustable anticipation
Terminals: R C O/B W Y G
