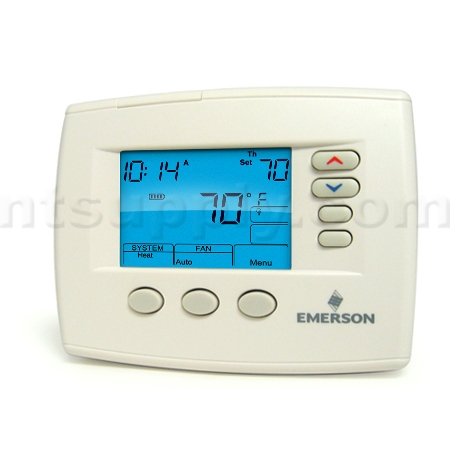

White-Rodgers 1F85-0477, Multi-Stage Programmable Thermostat

White-Rodgers 1F85-0477, Multi-Stage Programmable Thermostat

About This Thermostat

MFG: White-Rodgers
MFG#: 1F85-0477
Our#: 176972
Programmable: Yes (7, 5+2, 5+1+1, or non-programmable)
Stages: 3H & 2C
System Compatibility: Heat Pump, Multi-Stage
Power Options: 24 VAC Hardwire, Battery
Heat/Cool Changeover: Automatic or Manual
Programmable Fan: No
Temperature Limits: No
Keypad Lockout: No
Backlight: Yes
Vacation Hold: No

White-Rodgers 1F85-0477, Multi-Stage Programmable Thermostat

The best-selling digital thermostat series now has Blue. 80 Series Blue has a large 4-square-inch, easy-to-view Blue display and enhanced home comfort features. Take all the best features of the 80 Series, add exclusive Cool SavingsT, dedicated programmable or non-programmable, longer battery life with exclusive battery power monitor - put it all in a sleek, compact package and you have 80 Series Blue. Tried and true now comes in Blue!

Exclusive 80 Series Blue Features:
Large, 4-square-inch Blue display with easy-to-see characters
Quick one-button programming
Configures as manual heat/cool, auto changeover, heat only or cool only
Exclusive Cool SavingsT feature saves energy during peak A/C demand periods
Hydronic 2 or 3 wire applications
Three anticipation settings
Exclusive battery power monitor
Longer battery life
Easy-access battery compartment
5-year warranty

Choice of 7, 5/1/1, 5/2 day or non programmable
4 time and 4 temperature settings per program (heat & cool)
Energy savings up to 33%
Patented pre-programmed software simplifies time and temperature programming

Large LCD with improved contrast for easier reading
Lighted display for easier low-light viewing

Comfort & Convenience:
Permanent program retention during power loss
Indefinite setpoint Hold
Air filter change indicator
Simple "set-up" menu to activate optional features
Temporary temperature override two-hour minimum or until next program period
Soft-touch keypad
Display temperature recalibration (+/- 4┬░)

Dual-Powered.choice of battery-powered or hardwired, for all applications
Selectable Energy Management Recovery
Meets ENERGY STAR® specifications
Meets California Building Code, Title 24
Fast (FA) or slow (SL) heating cycle anticipation
Easy-to-wire terminal block
Compressor lockout protection
Millivolt compatible
Electric heat option

5.1"W x 3 .9"H x 1.2"D

Electrical Specifications:
0 to 30 VAC, 50/60 Hz or DC
0.05 to 1.5 Amps (load per terminal)
2.5 Amps maximum load
(all terminals combined)
Standard Systems
Gas, oil, electric
Single Stage/Heat Pump/Multi-Stage
Millivolt Systems
2 or 3 wire hydronic zone valve

TERMINALS: RC, RH, C, G, W/E, W2, Y, Y2, O/B, 6, L
