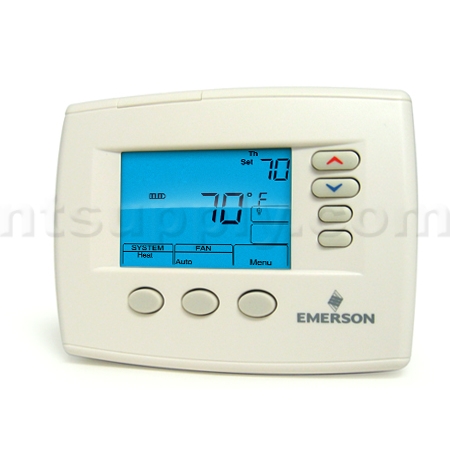

White-Rodgers 1F83-0471 Non-Programmable Universal Thermostat

White-Rodgers 1F83-0471 Non-Programmable Universal Thermostat

About This Thermostat

MFG: White-Rodgers
MFG#: 1F83-0471
Our#: 173721
Programmable: No
Stages: 2H & 2C
System Compatibility: Multi-Stage, Heat Pump, Millivolt, Single Stage
Power Options: Battery, 24 VAC Hardwire
Heat/Cool Changeover: Automatic or Manual
Programmable Fan: No
Temperature Limits: Yes
Keypad Lockout: No
Backlight: Yes
Vacation Hold: No

The best-selling digital thermostat series now has Blue. 80 Series Blue has a large 4-square-inch, easy-to-view Blue display and enhanced home comfort features. Take all the best features of the 80 Series, add exclusive Cool SavingsT, dedicated programmable or non-programmable, longer battery life with exclusive battery power monitor - put it all in a sleek, compact package and you have 80 Series Blue. Tried and true now comes in Blue!

. For Single Stage, Multi-Stage and Heat Pump Systems
. Non-Programmable
. Hardwired or Battery Powered

Large, 4-square-inch Blue display with easy-to-see characters
Configures as manual heat/cool, auto changeover, heat only or cool only
Exclusive Cool SavingsT feature saves energy during peak A/C demand periods
Hydronic 2 or 3 wire applications
Three anticipation settings
Exclusive battery power monitor
Longer battery life
Easy-access battery compartment
5-year warranty

Large LCD with improved contrast for easier reading
Lighted display for easier low-light viewing

Comfort & Convenience
Optional minimum and maximum temperature configurable
Permanent program retention during power loss
Air filter change indicator (optional)
Simple "set-up" menu to activate optional features
Soft-touch keypad
Display temperature recalibration (+/- 4°)

Dual-Powered.choice of battery-powered or hardwired, for all applications
Fast (FA) or slow (SL) heating cycle anticipation
Easy-to-wire terminal block
Compressor lockout protection
Millivolt compatible
Electric heat option

5.1"W x 3 .9"H x 1.2"D

Electrical Specifications:
0 to 30 VAC, 50/60 Hz or DC
0.05 to 1.5 Amps (load per terminal)
2.5 Amps maximum load
(all terminals combined)
Standard Systems
Gas, oil, electric
Single Stage/Heat Pump/Multi-Stage
Millivolt Systems
2 or 3 wire hydronic zone valve

Thermal Specifications:
Setpoint Temperature Range: 45° to 90° F (7° to 32° C)
80 Series Blue Rated Differential: 0.4° to 1.7° F with adjustable anticipation
Operating Ambient Temperature: 32° to 105° F (0° to 40° C)
Operating Humidity Range: 90% non-condensing maximum

RC, RH, C, G, W/E, W2, Y, O/B, 6, L
