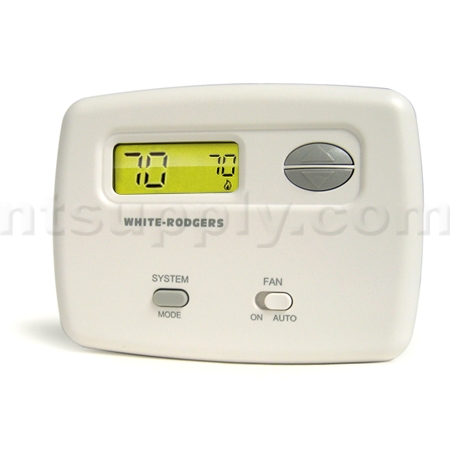

White-Rodgers 1F73-174 Non-Programmable MultiStage (2H/2C MS or 2H/1C HP) Thermostat
White-Rodgers 1F73-174 Non-Programmable MultiStage (2H/2C MS or 2H/1C HP) Thermostat
About This Thermostat
| MFG: | White-Rodgers |
| MFG#: | 1F73-174 |
| Our#: | 101559 |
| Programmable: | No |
| Stages: | 2H & 2C |
| System Compatibility: | Heat Pump, Multi-Stage |
| Power Options: | 24 VAC Hardwire |
| Heat/Cool Changeover: | Automatic or Manual |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | No |
| Vacation Hold: | No |
Programming/Set-up
Choice of Multi-Stage or Heat Pump operation
Display
Large LCD with improved contrast for easier reading
Comfort & Convenience
Automatic changeover
Soft-touch keypad
Maintains room temperature differential within 1 degree
Display temperature recalibration (+/- 3°)
Performance
Multi-Stage (2-stage heat, 2-stage cool)
Heat Pump (2-stage heat, 1-stage cool)
Fast (FA) or slow (SL) heating cycle anticipation
B or O terminal (selectable)
Compressor lockout protection (optional)
Dimensions
5.1"W x 3.7"H x 1.1"D
Electrical Specifications
Rating 20 to 30 VAC, 50/60 Hz or DC
0.05 to 1.0 Amp (load per terminal)
1.5 Amps maximum load (all terminals combined)
Standard Systems
Multi-Stage (2-stage heat, 2-stage cool)
Heat Pump (2-stage heat, 1-stage cool)
Thermal Specifications
Setpoint Temperature Range: 45° to 90°F (7° to 32°C)
Rated Differential: 0.6° to 1.6°F with adjustable anticipation
Operating Ambient Temperature: 32° to 105°F (0° to 40°C)
Operating Humidity Range: 90% non-condensing max
Choice of Multi-Stage or Heat Pump operation
Display
Large LCD with improved contrast for easier reading
Comfort & Convenience
Automatic changeover
Soft-touch keypad
Maintains room temperature differential within 1 degree
Display temperature recalibration (+/- 3°)
Performance
Multi-Stage (2-stage heat, 2-stage cool)
Heat Pump (2-stage heat, 1-stage cool)
Fast (FA) or slow (SL) heating cycle anticipation
B or O terminal (selectable)
Compressor lockout protection (optional)
Dimensions
5.1"W x 3.7"H x 1.1"D
Electrical Specifications
Rating 20 to 30 VAC, 50/60 Hz or DC
0.05 to 1.0 Amp (load per terminal)
1.5 Amps maximum load (all terminals combined)
Standard Systems
Multi-Stage (2-stage heat, 2-stage cool)
Heat Pump (2-stage heat, 1-stage cool)
Thermal Specifications
Setpoint Temperature Range: 45° to 90°F (7° to 32°C)
Rated Differential: 0.6° to 1.6°F with adjustable anticipation
Operating Ambient Temperature: 32° to 105°F (0° to 40°C)
Operating Humidity Range: 90% non-condensing max
