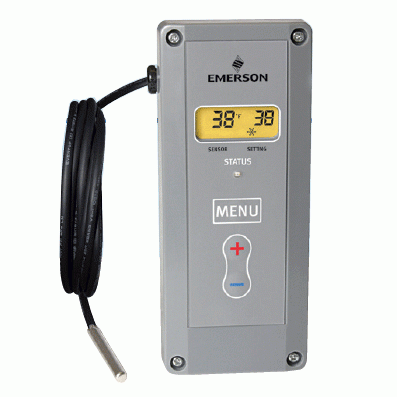

White-Rodgers 16E09-101 Electronic Temperature Controller (120 / 240V)

White-Rodgers 16E09-101 Electronic Temperature Controller (120 / 240V)

About This Thermostat

MFG: White-Rodgers
MFG#: 16E09-101
Our#: 175033
Programmable: No
Stages: 1H & 1C
System Compatibility: Heat Only,Line Voltage
Power Options: Hardwire

White-Rodgers 16E09-101 Electronic Temperature Controller - Multiple Input Voltage (24/120/208/240 Volts AC)

Superior Temperature Control and Accuracy for Both Refrigeration and Heating Applications...and It's Universal, Too!

FEATURES:
16E09-101 replaces most mechanical and electronic single stage controls using an SPDT output relay
Offers the widest multiple voltage operating range: 24/120/208/240 VAC for truly universal replacement
Does not require a common wire when electrical load is greater than 2.5 amps - saving 30 to 60 minutes installation time when upgrading a mechanical control
Offers a wider than industry standard setpoint temperature range (-40F to 220F) and adjustable differential settings
16E09-101 replaces most competitive mechanical and electronic refrigeration controls
Alarm Output with Selectable Delay
Prevents false alarms
No Common Wire Required (Electrical load must be greater than 2.5 amps and uninterrupted)
Saves 30-60 minutes installation time when upgrading a mechanical control

APPLICATIONS:
Convenience Store Freezer Control
Reach-In Coolers
Supermarket Display Cases (meat/produce)
Boiler Control
Restaurant/Convenience Store
Walk-In Coolers
Condenser Fan Cycling
Pump Control
Space and Return-Air Temperature

SPECIFICATIONS:
Setpoint Range:
-40 to 220F (-40 to 104C)
Differential Range: 1 to 30F (1 to 30C)
Supply Voltage:
24/120/208/240 VAC, 60Hz
Sensor: Negative Temperature Coefficien with 7.5-Ft. Leads (Maximum length for remote temperature sensing - 400 feet)
Control Enclosure Ambient Temperatures
Operating: -29 to 140F (-34 to 60C)
Storage: -40 to 185F (-40 to 85C)
Control Material
Cover and Case: NEMA 1 high-impact plastic
Thermoplastic: Non-flammable UL94V0
Switch Action: SPDT
Ambient Humidity: 0 to 95% RH, non-condensing

Dimensions:
6-3/4" L x 3" W x 2-9/16" D

ProThermostats.com Price:

$93.99

In Stock
