Proliphix PTS-R3SC Stainless Steel Sheath Thermal Sensor

Proliphix PTS-R3SC Stainless Steel Sheath Thermal Sensor

About This Product

MFG: Proliphix
MFG#: PTS-R3SC
Our#: 110248

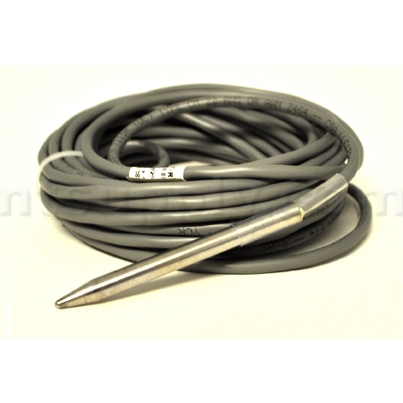

The Model PTS-R3SC Stainless Steel Sheath Thermister provides precision remote temperature sensing for the Proliphix NT20e and NT120e/h Network Thermostats. The active sensing element is a highly stable precision thermistor material accurate to within +/- .36oF (0.2oC).

The sensing element is ruggedized and sealed with a thermally conductive compound in a versatile 3" (7.6cm) long stainless steel tube. The probe is waterproof and ideal for use in refrigeration cases, or as a strap-on sensor for pipes.

FEATURES

Sensitive tip for precise measurements
Waterproof probe
Five-year warranty
+/- .36oF (0.2oC) accuracy
25ft (7.37m) lead

APPLICATION

The Stainless Steel Sheath Thermal Sensor is suitable for direct application to pipe surfaces for chilled or hot water measurement. It is also used ofr freezer cases where moisture protection is important. This rugged strap-on sensor comes with a 25ft (7.37m) cable which allows for termination away from areas of condensation. It is an ideal choice for freezer case applications.

SPECIFICATIONS

Sensing Element Thermistor (thermal resistor)
Accuracy +/- .36oF (0.2oC)
Temp Range -30oF to 140oF (34 to 60oC)
Temp Response NTC -Thermistor
Thermistor Stability 0.24oF (0.13oC) over 5 years
Connection 25ft (7.37m) 24 AWG pigtails
Mounting Directly to wall or pipe using standard
clips and brackets
Probe 304 Stainless Steel
