Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit
About This Thermostat
| MFG: | Honeywell |
| MFG#: | YTHX9321R5003 |
| Our#: | 172899 |
| Programmable: | Yes (7 Day or Non-Programmable) |
| Stages: | 3H & 2C |
| System Compatibility: | Multi-Stage, Heat Pump, Single Stage, Heat Only |
| Power Options: | 24 VAC Hardwire |
| Heat/Cool Changeover: | Automatic or Manual |
| Programmable Fan: | Yes |
| Temperature Limits: | Yes |
| Keypad Lockout: | Yes |
| Backlight: | Yes |
| Vacation Hold: | Yes |
Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit
The PrestigeT HD thermostat provides control of 24Vac of heating and cooling systems. RedLINKT enabled to work with compatible wireless accessories.

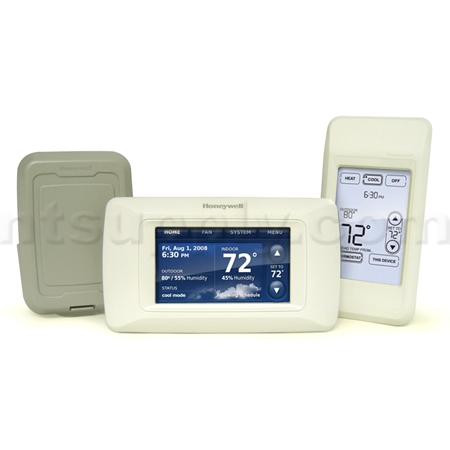

The PrestigeT HD Thermostat Kits contains
- THX9321R5000 PrestigeT HD Color Touchscreen Thermostat
- C7089R1013 Wireless Outdoor Sensor
- REM5000R1001 Personal Comfort Station
NOTE - THIS IS A WIRED THERMOSTAT - IT REQUIRES 24V COMMON WIRE. Accessories (Comfort Station and Outdoor Sensor) are wireless but wired connection with 24V "common" must be made between thermostat and heating/cooling equipment. CLICK HERE TO LEARN MORE ABOUT WIRING THIS THERMOSTAT.
FEATURES:
. Large, easy-to-read backlit full color display shows current indoor temperature and humidity, temperature setting, date and time on the home screen. Also displays outdoor temperature and humidity on home screen (if wireless outdoor sensor is installed)
. Adjustable backlight level allows thermostat to be on full brightness at all times or dim to the brightness level of choice when the thermostat is not being used
. Interview-Based Programming wizard to easily and confidently schedule thermostat temperatures and times
. USB Port allows downloading of installer settings to quickly and consistently perform setup of thermostats in similar applications
. USB Port also allows easy setup of dealer logo and contact information on thermostat screen
. Real-Time Clock keeps time during power failure; automatically updates for daylight saving time
. Precise Temperature Control (+/- 1°F) for reliable and consistent temperature.
. Multiple HOLD options allows modification of schedule as needed
. Change Reminders to inform it is time to replace Air Filter, humidifier pad, ultraviolet bulb or batteries in connected devices
. RedLINKT Enabled to communicate with compatible wireless devices
. Provides humidifier and dehumidifier control
. Kit Includes Portable Comfort Control, Wireless Outdoor Sensor and PrestigeT HD Thermostat
SPECIFICATIONS:
Description - Prestige HD Comfort Kit with Personal Comfort Station and Wireless Outdoor Sensor
Application - Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2Cool Conventional
Programmability - 7-Day Multiple Day Programming or Non-Programmable
Changeover - Auto or Manual
Color - Arctic White
Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan) - AUTO-ON-CIRC
Power Method - Hardwired
Terminal Designations - C, R, Rc, W-O/B, W2-AUX/E, Y, Y2, G, L, K, HUM, HUM, DHM, DHM
Electrical Ratings - 18 to 30 Vac
Frequency - 50 Hz; 60 Hz
Electrical Connections - Screw terminals
Operating Temperature Range (F) - 32 F to 120 F
Operating Temperature Range (C) - 0 C to 48.9 C
Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool 60 F to 99F
Setting Temperature Range (C) - Heat: 4.5 C to 32.0 C; Cool: 15.5 C to 37.0 C
Humidity Setting Range - Cooling: 40 to 80% RH. Heating: 10 to 80% RH.
Stages - Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Outdoor Sensor - Outdoor Sensor Included
Operating Humidity Range (% RH) - 0 to 90% RH, non-condensing
Includes - REM5000R1001 Personal Comfort Station and C7089R1013 Wireless Outdoor Sensor
Comments - Tri-Lingual Display (selectable for English, French or Spanish)
Used With - RedLINKT enabled thermostats and accessories
Display Size - 8.06 sq. in.
Thermostat Dimensions: 7" W x 4" H x 1-1/2" D
Humidification Setting Range - 10 to 60% RH.
Dehumidification Setting Range - 40 to 80% RH.
Voltage - 18 to 30 Vac
ProThermostats.com Price:
$409.00
Related Products & Accessories
Customers most agreed on the following attributes:
from Boulder, CO on 6/15/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
The configuration manual could use more detail about what the various settings mean. It isn't clear to me if the humidifier will operate in the cooling mode (important for arid areas of the country).
from Raleigh, NC on 6/2/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
Installed and programed this thermostat in 45 minutes. My wife learned to use it with 3 minutes of instruction.
from Virginia on 5/28/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
Amazing product. The remote that can act like another thermostat is great. I live in a townhouse and the upstairs is sometimes considerably hotter than the rest of the house. This remote allows me to adjust cycles based on the upstairs temp, where I am (instead of running up and down the steps to adjust it). It is also very simple to program, make adjustments, then menu guides you through. I wondered if I was crazy to spend this much money on a thermostat, but after install and using it for a few weeks I think it is worth every. single. penny.
from Silver Spring, MD on 5/24/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
We have a three story townhome, and walking from the bedroom (level 3) to my office (level 1) used to be like travelling from the tropics to the arctic. Honeywell has transformed our home into a temperate zone..automatically..24 hours a day..whichever level we're on. Temperature is consistent within 2 degrees..and with the remote, if I choose to be pampered I can have it my way whichever level I'm on. Couldn't ask for life to be better
[1 of 1 customers found this review helpful]
from Spotsylvania, VA on 5/21/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
I bought this unit to solve a problem with the location of the thermostat on our second floor. We have an open floor plan and the old thermostat was located in an open area above our 2 story family room, and it kept our heat pump system running all the time. I use one of the bedrooms as an office and sleep in one of the other ones at times. Before I got this unit it was either freezing or roasting in the rooms and I could never seem to find a good setting that worked with my wife setting our downstairs system. This unit allowed me to regulate the temperature of every room and has really solved the problem. I installed the unit myself in about an hour, including the outside thermostat. So far all is well, and hopefully the setup will work alright in the winter for heating as I had to guess about some of the wiring and setups for my existing system - my problem, not anything with the thermostat. Right now I am completely satisfied with this unit and enjoy the great display and the feedback I now have of outside temperature. The remote unit is really easy to use and I can now regulate the temperature to whatever I want, wherever I am on the second floor. I would highly recommend this unit and have thought about getting another one for our furnace for the first floor.
from Minneapolis, Minnesota on 5/14/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
Easy to read display (HD) in color can read the temperature from virtually 15 feet away from the thermostat. I purchased the package with an outdoor temperature sensor and a remote control. I'm using the remote control as a portable thermostat in my basement; with it you can run your hvac heating and cooling settings from the remote making it more comfortable in whatever room or portion of the home that you're in. When leaving you can change control back to the central thermostat. It's like having two thermostats in your home with one being portable. I find the color display readouts to be easier on the eyes than the grey and green screen displays of older digital thermostats. I'm happy with this product. The one negative was the price at [$]; it's expensive as far as thermostats go but I believe the benefits outweigh the cost of new technology. Honeywell is going in the right direction with this model.
from Wilmington, DE on 4/21/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
Took several trips from the installer to finally figure out that the already-installed Honeywell True Steam humidifier was making the thermostat put on the A/C and furnace at the same time! A different rewireing was the solution. Don't try to install thermostat yourself.
Doesn't have automatic shift from cool to heat.
Random fan coming on is nice to keep house air unstratified.
Remote is nice as it keeps the air in its own location at the temperature you want.
Holds temperature very well - to within about one degree. My old one was +- 1.5 degrees.
You don't need the mounting plate.
from Tampa, FL on 4/20/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
I'm not really a handyman, but this product was fairly simple to install. Although the settings were somewhat confusing, nothing a little research couldn't resolve. Great Product and will be purchasing another one.
from NC on 4/12/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
ProThermostats com was great to deal with even when the product failed they we quick to send a replacement with out delay. Great job would highly recommend them. Great Job!
from Kansas City, Mo on 4/6/2010Comments about Honeywell Prestige HD YTHX9321R5003 Deluxe Comfort Thermostat System Kit:
I replaced the old thermostat on my Trane heat pump with two stage heat, emergency heat, and single stage cooling. 7 day programming was a requirement and, of course, compatibility. This thermostat exceeded my expectations in terms of the ease of use. Installation was easy, once I decoded how my Trane system was set up. That process was the hardest and not due to any fault of the thermostat. I have since had a heating and cooling technician take a look at my system for an unrelated issue, and the thermostat caught his attention. He was extremely impressed as well.
