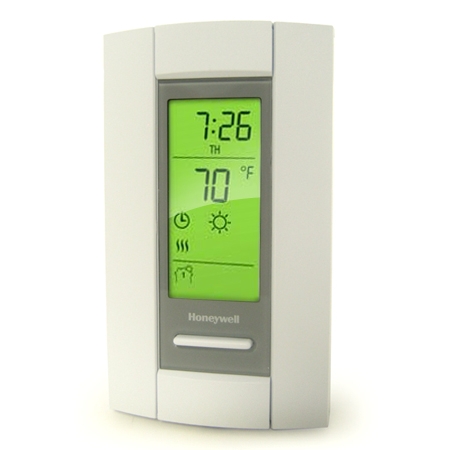

Honeywell Digital LineVoltProT 8000 Programmable Heat Only Thermostat
About This Thermostat
| MFG: | Honeywell |
| MFG#: | TL8230A1003 |
| Our#: | 101013 |
| Programmable: | Yes (7 day) |
| Stages: | 1 Heat |
| System Compatibility: | Line Voltage |
| Power Options: | Hardwire, Power-Stealing |
| Heat/Cool Changeover: | None |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | Yes |
| Vacation Hold: | No |
Note: This is a "4-wire" Thermostat
FEATURES
. 7 day programmable - maintain the pre-set program schedule for up to 20% energy savings, or modify the schedule to fit your lifestyle.
. Electronic temperature control - precision of ±1º F saves up to an additional 10% on heating bills.
. Large, clear, backlit display - easy to read in various lighting conditions.
. Soundproofed for quiet operation - reduces the clicking noise commonly heard with conventional thermostats.
. On/Off switch allows you to turn the thermostat off at the end of the heating season.
. Early start - ensures programmed temperature is reached by programmed time.
. Heating indicator - at a glance confirmation that the heat is on.
. Maintenance free - no batteries required.
. In the event of a power outage - these thermostats default to 70 degree setpoint
. 5-year limited warranty.
SPECIFICATIONS:
Application - Electric baseboards, convectors and fan forced heaters (resistive rated loads).
Programmability - 7 Day Program
Color - Premier White®
Switching Action - DPST
Dimensions (in.) - 4 7/8 in. high x 2 ¾ in. wide x 7/8 in. deep
Dimensions (mm) - 124 mm high x 70 mm wide x 23 mm deep
Mounting - Vertical
Electrical Ratings - 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC
Frequency - 50/60 Hz
Electrical Connections - 5.5 in. (140mm) tinned copper lead wires
Operating Temperature Range - (F) 32F to 122 F
Operating Temperature Range - (C) 0 C to 50 C
Setting Temperature Range (F) - 40 F to 86 F
Setting Temperature Range (C) - 5 C to 30 C
Stages - 1 Heat
Sensor Element - Thermistor
Approvals, Underwriters Laboratories Inc UL Listed 9R12, File Number: E183695
Approvals, Canadian Standards Association cCSAus, File Number: LR76030
Display Size 2.67 sq. in.
Voltage 208/240 Vac
Warranty: 5 year
Customers most agreed on the following attributes:
[1 of 1 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
The instructions were not very user friendly. We ordered two of these and when we installed the second one it was not as simple as our first installation due to a slight difference in the wires available. I understand that it is not the product that was the challenge but we scoured the instructions for clarity and were unable to find any. Even going out to the web posed a challenge. Once the second was installed correctly it works fine. Just a rather frustrating installation as it actually was a 2 day process.
[1 of 1 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
This product has given us grea relief, as the old basic softheat themostats are so inaccurate, they get stuck and just let the heat run full blast all day long,.,.it either had to be 90 degress or turned off and cold.
This product has solved all of that...it looks great on the wall, easy to read, the intallation was a bit tricky with the wiring...but not too bad...about 2 hours for 2 units.
I have not seen my electric bill yet but I am willing to bet it is 30 percent less.
Great product so far...I will order 2 more for the rest of my home.
[2 of 2 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
The unit was easy to install and the directions excellent. Programming was a snap. I also installed a RobertShaw unit which was much more difficult to deal with.
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
Use for Bath kick board heater
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
Needed programable thermostat to handle 16 amp heater load. I could not find any products with this rating, so tried this Honeywell unit. It works fine.
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
Hard to install if you are not an electrician.
[1 of 1 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
VERY FLEXIBLE USE STAT, REASONABLY SIMPLE TO INSTALL AND SET UP. PRICE WAS VERY REASONABLE.
[1 of 3 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
Everything is great, but it needs to accommodate a 20 Amp standard circuit.
[1 of 1 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
looks great its honeywell, easy to work it works and it's very friendly to handyman
[1 of 1 customers found this review helpful]
Comments about Honeywell Digital LineVoltPro 8000 Programmable Heat Only Thermostat:
I installed 5 units in 5 different rooms and programmed them accordingly. My electric bill (I have electric heat) dropped by half the first month these units were in.
