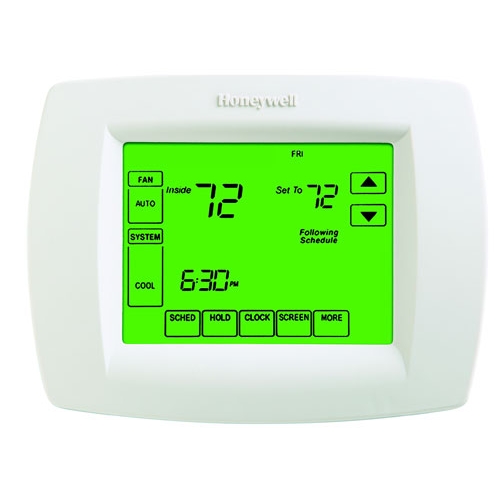

Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification
About This Thermostat
| MFG: | Honeywell |
| MFG#: | TH8321U1006 |
| Our#: | 100927 |
| Programmable: | Yes (7-day or non-programmable) |
| Stages: | 3H & 2C |
| System Compatibility: | Multi-Stage, Heat Pump, Millivolt |
| Power Options: | Battery, 24 VAC Hardwire |
| Heat/Cool Changeover: | Automatic or Manual |
| Programmable Fan: | Yes |
| Temperature Limits: | Yes |
| Keypad Lockout: | Yes |
| Backlight: | Yes |
| Vacation Hold: | Yes |
. Large, Clear Display with Backlighting current temperature, set temperature and time are easy-to-read and all are displayed on the home screen.
. Menu Driven Programming Guides you through the scheduling process, showing only necessary information and choices on each screen.
. Ability to Select Multiple Days allows you to easily customize the thermostat for your unique schedule.
. Real-Time Clock keeps time during power failure; automatically updates for daylight savings.
. Armchair Programming allows you to remove thermostat from wall to set the schedule.
. Precise Temperature Control (+/- 1 F) reliable, consistent comfort.
. Multiple HOLD options allows you to modify schedule indefinitely or for a specific time.
. Change Reminders reminds you to service or replace the air filter, humidifier pad, ultraviolet lamp or thermostat batteries.
. Programmable Fan increases air quality when combined with a whole-house air cleaner.
. Outdoor Temperature Indication (with optional sensor) shows current outdoor temperature on the display to help you plan outdoor activities.
. This model allows you to decrease summer humidity. The thermostat monitors humidity. When humidity increases, the thermostat runs the air conditioner longer to reduce humidity (up to 3°F below your cooling temperature setting). The intent is not to actually make the system reach the Relative Humidity setting; the intent is to make the home owner feel more "comfortable". This is done by moving the temperature set point down 1 degree for every 4% Relative Humidity.
SPECIFICATIONS:
Description - VisionPRO® Touchscreen 7-Day Programmable 3 Heat/2 Cool Conventional and Heat Pump Thermostat
Application - Conventional and Heat Pump systems
Programmability - Universal Programming from 7 Day to Non-Programmable
Changeover - Auto/Manual Selectable
Color - Premier White®
Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan) - AUTO-ON-CIRC
Power Method - Battery or Hardwired
Terminal Designations - R, RC, W (O/B), W2 (AUX), Y, Y2, L, E, G, C, S1, S2
Dimensions (in.) - 4 9/16 in. high x 6 in. wide x 1 1/4 in. deep
Dimensions (mm) - 116 mm high x 152 mm wide x 32 mm deep
Mounting - Horizontal
Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C) - Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Differential Temperature (F) ± 1 F
Differential Temperature (C) ±0.5 C
Stages Up to 3 Heat/2 Cool
Outdoor Sensor - Yes, optional outdoor or indoor remote
Remote Sensor - Yes, optional outdoor or indoor remote
Sensor Element Thermistor
Heat Current 1.0 A running
Cool Current 1.0 A running
Fan Current 0.6A running
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Comments The L terminal is an input or output.
Display Size 10 sq. in.
Voltage 20 to 30 Vac or 750 mV
ProThermostats.com Price:
$144.95
Related Products & Accessories
Customers most agreed on the following attributes:
from ocala,FL on 11/30/2009Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
great
[0 of 2 customers found this review helpful]
from Englewood, Fl on 5/4/2009Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
I thought this unit, for the price, I would be able to set the humidity so the A/C would start at the set percentage. Very expensive for a programable thermostat.
[2 of 3 customers found this review helpful]
from Chicago IL on 1/12/2009Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
Incredibly easy to install and program. Running the cable was the hardest part. Clear instruction manual. Professional and high-end in every way. Display is large enough to show what is going on without the need to press more buttons. Love the backlight. Highly recommended.
Arrived quickly and in perfect condition.
[1 of 2 customers found this review helpful]
from wapakoneta,ohio on 12/23/2008Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
so easy to program had it up and running in less than 45 minutes
[0 of 1 customers found this review helpful]
from Enterprise, AL on 7/15/2008Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
Installed in my home to replace an mechanical thermostat in my home. Preprogrammed setting only needed a little tweaking. Works Great.
[4 of 5 customers found this review helpful]
from Maryland on 4/16/2008Comments about Honeywell VisionPro 8000 Programmable MultiStage Thermostat with Dehumidification:
As a renter, I replaced the apartment thermostat with this model. I have since moved to another apartament -- reinstalled the original apartment thermostat and took 8000 to the new apartment. Functions great, easy to program (without needing the instructions), does the job, and is very easy to install. I particularly like the feature where the fan can be set to come on randomly at additional times to circulate air (evens out temp variations in different rooms) through the apartment, without having to just leave the fan running all the time. I purchased the MultiStage version so it would work with whatever apartment equipment I encountered. I would recommend it to anyone.
