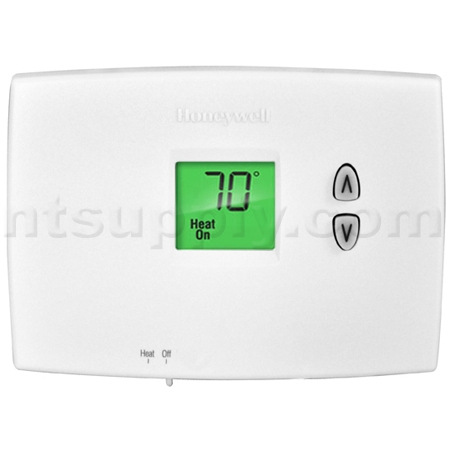

Honeywell PRO 1000 Heat Only Non-Programmable Thermostat

Honeywell PRO 1000 Heat Only Non-Programmable Thermostat

About This Thermostat

MFG: Honeywell
MFG#: TH1100DH1004
Our#: 177109
Programmable: No
Stages: 1 Heat
System Compatibility: Heat Only
Power Options: 24 VAC Hardwire, Battery
Heat/Cool Changeover: Manual
Programmable Fan: No
Temperature Limits: No
Keypad Lockout: No
Backlight: Yes
Vacation Hold: No

Working within a budget doesn't mean you have to sacrifice quality. Provide your customers with an option that fits their expectations - and their budget - with Honeywell's PRO 1000 Non-Programmable Thermostats. Perfect for multi-family housing developments or apartment complexes, PRO series thermostats feature the quality, reliability and performance that you can expect from Honeywell at a price that's just right.

* Dual Powered - Battery and/or Hardwire
* Horizontal Orientation
* Backlit Display - Easy to read in various lighting conditions
* Provides a special "garage" application mode with setpoint range of 35 F to 90 F
* 2-Year Warranty

Product Specifications:
Description - Non-programmable Digital Thermostat
Application - Heat Only
Mounting - Horizontal
Changeover - Manual
Color - Premier White®
Stages - 1 Heat
Power Method - Dual Powered: Battery or Hardwire
Terminal Designations  - R, C, W
Switch Positions (System) - HEAT-OFF
Switch Type - Relay
Accuracy (F) ±1 F
Accuracy (C) ±0.5 C
Dimensions (in.) 3 7/16 in. High x 4 10/16 in. Wide x 1 3/16 in. Deep
Dimensions (mm) 87mm High x 119mm Wide x 30mm Deep
Setting Temperature Range (F) Selectable Heat: 40 F to 90 F or 35 F to 90 F
Setting Temperature Range (C) Selectable Heat 4.5 C to 32 or 1.5 C to 32 C
Electrical Ratings 20 to 30 Vac or 750 mV
Frequency 50 Hz
Frequency 60 Hz
Cycles per Hour Heating 2-6 CPH
Heat Current 0.02 A to 1.0 A running
Sensor Element Thermistor
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Comments Adjustable Temperature Scale: Standard selection of 40 to 90F or Garage selection of 35 to 90F
Display Size 1.32 sq in.
Voltage 20 to 30 Vac or 750 mV
