Honeywell T410B1004 Line Voltage Heat Only Thermostat
Honeywell T410B1004 Line Voltage Heat Only Thermostat
About This Thermostat
| MFG: | Honeywell |
| MFG#: | T410B1004 |
| Our#: | 177123 |
| Programmable: | No |
| Stages: | 1 Heat |
| System Compatibility: | Line Voltage, Heat Only |
| Power Options: | Hardwire |
| Heat/Cool Changeover: | None |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | No |
| Vacation Hold: | No |
Honeywell T410B1004 Line Voltage Heat Only Thermostat

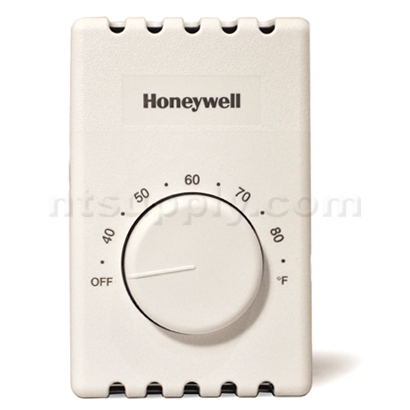

The Honeywell T410B1004 Electric Heating Thermostat provides line voltage control of a radiant cable, electric baseboard, and resistive-rated fan forced heaters within the ratings listed below.
FEATURES:
- Economical.
- Replace virtually any four-wire (T410B) line voltage wall-mounted electric heating thermostat.
- Easy to install; 6 in. (150 mm) color-coded leads.
- Include long-lasting Micro Switch mechanism.
- Rugged, plastic mounting base and one-piece cover with vents.
- Ideally suited to new construction applications.
- Positive "OFF" position
- 1 Year Warranty
SPECIFICATIONS:
Switching Action: Double-Pole / Single Throw (DPST)
Dimensions: 4.5" H X 2.75" W X 2.25" D
Color: White
Setpoint Range: 40-80 Degrees F
Electrical Ratings: Non-inductive Resistive 22A at 120/208/240 VAC 19A at 277 VAC
