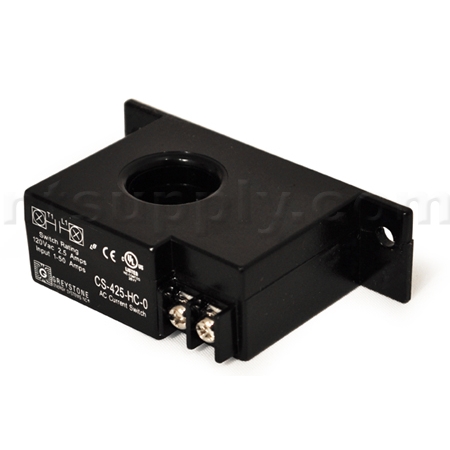

AC Currrent Sensing Fan Switch - ACCS 40
About This Product
| MFG: | Fantech |
| MFG#: | ACCS40 |
| Our#: | 171673 |
AC Currrent Sensing Fan Switch - ACCS 40. This 120 VAC switch can directly control AC loads (fans, relays, lamps) in response to the to the current of a monitored AC circuit. This can be used were a pressure switch is ineffective or impractical.
Applications:
Direct connection to PC's for general status, monitoring
Directly control AC loads, such as relays, lamps or fans in response to the current of a monitored AC circuit
Replaces differential pressure switches
Safety and alarm circuits
Monitor motors for broken belts or jammed tooling
Heater monitoring
SPECIFICATIONS:
Input Range: 1.25 - 40 Amp Turns
Max Amps - 2.5
Op. Temperature - 32 - 104 degrees F
Trip Set Point -factory pre-set at approximately 1.25 amps
Dimensions: 2.75" X 3.5" X 1.1"
AC conductor hole - .75" diameter
Switch rating: 120 VAC @ 2.5 Amps Max
Reviewed by 1 customer
Displaying review 1
Pros
- Easy To Install
- Intuitive Controls
Cons
Best Uses
- Homes
Comments about Fantech AC Currrent Sensing Fan Switch - ACCS 40:
I needed to install a booster exhaust fan for my clothes dryer. The pipe exceeded the length allowed by fire code. Not knowing this product existed, I was about to design an electronic control panel to turn on/off the fan simultaneously with the dryer. Needless to say, when I looked in the internet and found this switch I was very relieved. It works just as a clamp-on ammeter, sensing voltage going through the hole in the switch. Even though the first one I received was defective, the company sent back a new one immediately. Very easy to install. and it works very well. I would certainly recommend this product and especially the excellent customer service of iaqsource.com.
