BAYweb Internet Thermostat Kit - White - Single Stage

BAYweb Internet Thermostat Kit - White - Single Stage

About This Thermostat

MFG: Bay Controls, LLC.
MFG#: BW-WT1-White
Our#: 175279
Programmable: Yes (7 Day)
Stages: 1H & 1C
System Compatibility: Single Stage
Power Options: 24 VAC Hardwire
Heat/Cool Changeover: Automatic or Manual
Programmable Fan: Yes
Temperature Limits: Yes
Keypad Lockout: Yes
Backlight: Yes
Vacation Hold: No



BAYweb Internet Thermostat Kit - White - Single Stage.  Controls conventional 1 Heat / 1 Cool HVAC Systems.

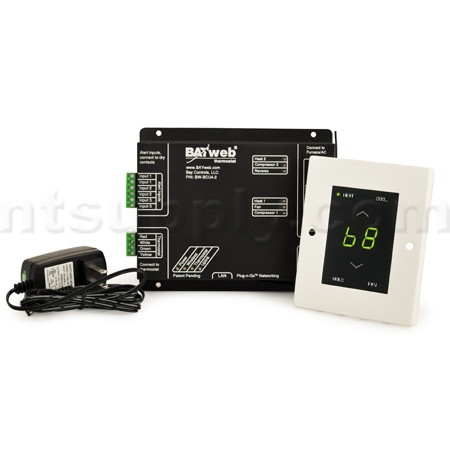

Kit Includes:
BW-T100 Thermostat Keypad - White
TW-BCU1 Thermostat Control Module - connects with BW-T100 keypad, HVAC equipment, unlimited X10 wireless, and one wired alert inputs.

  • Designed to install yourself, the BAYweb Thermostat is the least expensive and most full featured Internet enabled thermostat available.  Operate your thermostat anytime anywhere via web browser or web-enabled mobile phone. Unlimited use of the BAYweb portal is included at no additional charge.
  • This state-of-the-art portal provides real time monitoring, control, and reporting.
  • Applets give you the ability to easily customize your personal web portal to suit your needs, and provide the manufacturer with the ability to efficiently add new features and capabilities for the BAYweb device.
  • Applets are available for everything from thermostat control and energy reporting to local weather. Additional applets are continuously being created, all free for you to use.
  • Seamless integration with your local keypad and mobile phone, changes made on any interface will be seen and take effect within 10 seconds.

How to get started:
The BAYweb internet thermostat system uses two modules.  A simple keypad is placed where the old thermostat went.  The BAYweb control module is installed behind the scenes, often in the mechanical room.  4-conductor thermostat wire runs from the keypad to the control module.  4-conductor thermostat wire (or up to 8 wires on the Advanced module) runs from other side of the the control module to your HVAC system.  The control module plugs into a standard 115V electrical outlet, but can also be powered using 24V transformer from your HVAC equipment.  A Cat5 ethernet cable runs from a LAN port on the control module to your internet router or switch.

Bay's Plug-N-GoTM networking technology enables you to utilize all of the Internet-based capabilities by simply plugging it in to your network.  No network or router changes, or network experience is required.
Requires a full time broadband Internet connection.  To use existing thermostat cable, at least 4 conductors are required.  Exclusively for use in the United States. Temperature indicated in degrees Fahrenheit.

Setup is quick and simple.  Use the Portal on BAYweb's website to set up your account.  Once that is complete, setup your schedule, energy monitoring, keypad lockout, etc. on the internet from any computer with web access.

Product Features:

  • Alerts via email (HVAC problems, excessive energy usage, intrusion, loss of internet connectivity)
  • Keypad Lockout
  • Setpoint Limiting
  • Circulation Fan Mode
  • Auto-Changeover
  • Local Weather Display
  • X-10 wireless protocol compatibility
  • Occupancy sensing (with optional wired or wireless sensor)
  • Door entry sensing (with optional sensor)
  • Wired alert input  - one input included on standard kit, three included on advanced kit
  • Energy useage and cost reporting
  • HVAC Terminals - R, W, Y, G
  • 5-Year Warranty

CLICK HERE TO READ FREQUENTLY ASKED QUESTIONS

ProThermostats.com Price:

$195.00

Regular $220.00, You Save $25.00 (11%)
In Stock

Quantity

Shipping Details
  • Standard: 2-7 Business Days: Free!
Shipping fees listed are for a quantity of (1)

REVIEW SNAPSHOT®

by PowerReviews
Bay Controls, LLC.BAYweb Internet Thermostat Kit - White - Single Stage

4.3

(based on 6 reviews)

100%

of respondents would recommend this to a friend.

Pros

  • Easy to install (6)
  • Easy to adjust (5)
  • Simple controls (5)
  • Intuitive controls (3)

Cons

    Best Uses

    • Home (5)
    • Central controls (3)
      • Reviewer Profile:
      • Homeowner (4)

    Reviewed by 6 customers

    Sort by

    Displaying reviews 1-6

    Back to top


    5.0

    Easy to Install!

    By Mike at Dorrington

    from Dorrington, CA

    About Me Homeowner

    Verified Buyer

    Pros

    • Easy To Install
    • Precise Controls

    Cons

      Best Uses

      • Vacation Rentals

      Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

      Very easy to install. Worked immediately upon firing up, hooked up to Internet automatically, was easy to set up online except the online interface is slightly confusing.

      (1 of 1 customers found this review helpful)


      4.0

      Bayweb Pro

      By monstrgrn

      from Philadelphia, PA

      About Me Handyman, Homeowner, Professional

      Verified Reviewer

      Pros

      • Easy To Adjust
      • Easy To Install
      • Intuitive Controls
      • Precise Controls

      Cons

        Best Uses

        • Central Controls
        • Homes
        • Large Rooms
        • Offices

        Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

        I have 15 years of backround with commmercial HVAC controls, so when looking for a product that was affordable and easy for my family to use and understand Bayweb fit the bill.

        I've had very good experience, with Pro the product. I have found only one drawback, if you have a hybrid system ie: heat-pump with a multi-stage gas furnace, you do not have the ability to control multiple stages of furnace as well as multi-stages of heat-pump. After speaking with Bayweb they said they are working on adding this to future releases. I have multiple occupancy sensors installed and the set-back works very well. I used the other available inputs for a water detector and a supply temperature sensor. Everything works very well.

        The web-page is fairly intuitive but more direction and labeling would help ease set-up and configuration.

        Overall a 4 out of 5.


        4.0

        Don't wait - this thing is great!

        By Dougster

        from Texas

        About Me Handyman

        Verified Buyer

        Pros

        • Easy To Adjust
        • Easy To Install

        Cons

        • Need power near hvac unit

        Best Uses

        • Central Controls
        • Homes

        Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

        Installed in my lake house. Unit easy to adjust through their portal and system will notify you if there is an issue. had a problem with fan not coming on at first, cantact tech support and they told me that it would correct itself when I registered it. So far so good. I think I will get one for my full time residence as well! Wish they would build an iphone app although the iphone has no issue with accessing their portal.


        4.0

        Very cool!

        By Mitch

        from Cheektowaga, NY

        About Me Homeowner

        Verified Buyer

        Pros

        • Easy To Adjust
        • Easy To Install
        • Precise Controls

        Cons

          Best Uses

          • Homes

          Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

          installed in my home, easy install, works simply. I am would prefer the controls to be accessed locally not web based AND I wish the mobil/cell website had a log off button when you were done using the site. Other than that, this is a FANTASTIC ITEM and worth the $$ to me.

          (1 of 1 customers found this review helpful)


          4.0

          Good start and excellent potential.

          By Chris

          from Atlanta, GA

          About Me Property Manager

          Verified Buyer

          Pros

          • Easy To Adjust
          • Easy To Install
          • Intuitive Controls
          • Precise Controls

          Cons

          • Web Temp Profile

          Best Uses

          • Central Controls
          • Homes
          • Offices
          • Rentals

          Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

          We have so far bought four of these units as a test in mountain rental cabins. The goal is to provide ease of use to the occupant while having limits to temperature settings and be able to change settings when unoccupied. This device fits that bill perfectly. Very easy to install and setup. The occupant cannot by design change major system settings or schedules. Just raise or lower temps within the preset limits.

          The only drawbacks I see are the mounting procedure for the wall control. The control design doesn't allow for a means to positively fasten to the wall and has the potential to get dislodged.

          The web interface can be confusing on first use as the instructions do not exactly mirror what you see on the screen. There are also four modes to choose from and it wasn't clearly defined how they are different from each other.

          These are minor issues that get worked out with time but overall a great product and great idea.

          (3 of 3 customers found this review helpful)


          5.0

          So far very happy with thermostat

          By Maxs

          from Pleasant Hill, CA

          About Me Homeowner

          Verified Buyer

          Pros

          • Easy To Adjust
          • Easy To Install
          • Intuitive Controls
          • Precise Controls

          Cons

            Best Uses

            • Homes
            • Vacation Homes

            Comments about Bay Controls, LLC. BAYweb Internet Thermostat Kit - White - Single Stage:

            I purchased the Bayweb thermo to install in a vacation home in the mountains. Its been in operation for about two weeks and so far I've been very satisfied. I've never installed a thermo before but had no trouble installing and setting up the system. I very much like the network capability of this model. It's great to be able to turn on the heat at my cabin before arriving, particularly at night. I also like the security features of using the motion sensor to alert me if someone enters.

            The web based controls are very comprehensive. In addition to basic info on temperature there are lots of cool features such as graphs of temperature and energy use. The user interface is flexible and well layed out. While they have done a pretty good job of making it intuitive, given the nature of the system (eg, network controls and lots of options of controlling times) it will take you some time to learn how to operate it.

            My one recommendation to the manufacturer is to offer an option for a wi-fi network connection. There's only an Ethernet port and it would be easier in many cases to use wireless rather than run network cable.

            All in all, I have no problem recommending this product.
