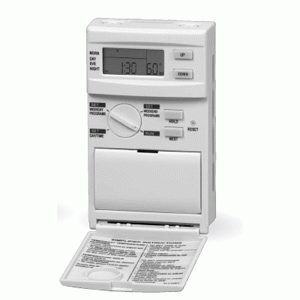

LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only
About This Thermostat
| MFG: | LuxPro |
| MFG#: | PSPLV512 |
| Our#: | 101632 |
| Programmable: | Yes (5+2) |
| Stages: | 1 Heat |
| System Compatibility: | Line Voltage |
| Power Options: | Battery |
| Heat/Cool Changeover: | None |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | No |
| Vacation Hold: | Yes |
REPLACES MODEL PSPLV510 (AKA ELV1)
Single-Pole AND Double-Pole Line Voltage - 4 Wires. Good for 125 and 240 VAC.
ELV4 (PSPLV512) line voltage thermostat is a cost effective, energy saving programmable thermostat for baseboard, cable and ceiling heat. The thermostat features seperate programs for weekdays and weekends with 4 settings per day.
You can have the thermostat provide the temperature you want when you wake up and turn the heat down during the day when you leave the house, saving energy. The thermostat can also automatically bring the heat back up in the evening and offer yet another setting to keep you warm through the night as you sleep. Your custom settings start over each morning for energy savings day in and day out.
Also, the Speed Dial makes this thermostat easier than ever to program.
Features
-On Screen Programming
-Temporary Override
-Vacation Hold
-4 Programs periods per day
-240VAC & 120VAC applications - single OR double pole
-Front Battery Access
-HEAT / OFF Switch
- Setpoint Range: 45-90 Degrees Fahrenheit
-4.7" H X 2.7"W X 2.4" D
-Rated up to 16 AMPS
-Heating wattage rating is 1900 Watts (non-inductive) at 125VAC / 3800 Watts (non-inductive) for 250 VAC
Requires (2) AA batteries (not included)
Related Products & Accessories
|
LuxPro WP512 Thermostat Wall Plate
|
$7.95
|
Customers most agreed on the following attributes:
from Richmond, VA on 3/23/2010Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Easy to use little unit
from Wellington, Ohio on 1/27/2010Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
[...] I found it easy to install and to program. I should have purchased at the same time the back plate, as this one is a bit smaller that the thermostat I replaced. I will be ordering another thermostat for another room.
from virginia on 1/20/2010Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Very easy to install. Only 2 wires to connect and so far works great. Would have preferred an illuminated screen.
[0 of 1 customers found this review helpful]
from ny,ny on 12/23/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
good control and apperance
from Pocono's on 11/21/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Great Device to help regulate the heating of your home! The weekend and weekday settings are the best!
from Long Island, NY on 11/5/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Very easy to install and simple to program.
LCD readout is bit small, but manageable.
Does a good job of holding temperatures and is easy to override settings when you need to.
I've purchased two and will buy a third for the basement. I expect these to pay for themselves in one winter of saved oil.
[1 of 1 customers found this review helpful]
from Blanding, Utah on 11/1/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Great for ceiling heat control, have it in three rooms now, plan to order a couple more. Have looked and looked in DIY stores and could not find, clerks had no clue what I was asking about. Brought a couple of them home but required 4 wire connection, and didn't seem to accomodate 220 volts.
Installation instruction are great. Saw these one day while searching internet, couldn't belive what I read, seemed to be just what I was looking for. So I ordered one, it worked great. Thanks you guys!
Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
I have three of these. I would prefer units that have a illuminated display. I'm returning these for different ones that have this feature.
from Long Island, NY on 9/16/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Installs easily. Programs quickly!
from Seattle, WA on 3/31/2009Comments about LuxPro ELV4 (PSPLV512) Programmable (5+2) Line Voltage Thermostat, Heat Only:
Great solution for saving money on line voltage heaters.
Fast delivery, arrived as promised.
