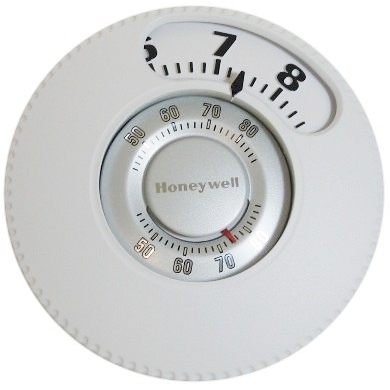

Honeywell Round Easy-To-See Mercury Free 1 Heat/1 Cool Thermostat
About This Thermostat
| MFG: | Honeywell |
| MFG#: | T87N1026 |
| Our#: | 110872 |
| Programmable: | No |
| Stages: | 1H & 1C |
| System Compatibility: | Single Stage |
| Power Options: | N/A |
| Heat/Cool Changeover: | Manual |
| Programmable Fan: | No |
| Temperature Limits: | No |
| Keypad Lockout: | No |
| Backlight: | No |
| Vacation Hold: | No |
. Mercury Free
. Classic Styling
. Premier White®
. Separate temperature setting and thermometer
. The Easy-To-SeeT has enlarged scale and raised numbers--plus it click at every 2ºF change
FEATURES:
Description- The Round® Heat and Cool Mercury Free Thermostat
Application- Conventional and Heat Pump systems
Mounting- Round
Changeover- Manual
Color- Premier White®
Stages- 1 Heat/1 Cool
Power Method- Uses stored power from heating and cooling controls.
Terminal Designations- R, Rc, W, Y, G, O, B
Switch Positions (Fan)- AUTO-ON
Switch Positions (System)- COOL-OFF-HEAT
Switch Type- Relay
Accuracy- (F) 2 F
Accuracy- (C) 1 C
Dimensions (in.)- 4 in. diameter x 1 3/4 in. deep
Dimensions (mm)- 102 mm diameter x 45 mm deep
Setting Temperature Range- (F) 40 F to 90 F
Frequency- 60 Hz;50 Hz
Cycles per Hour- Adj. 1,3,5,9
Cool Current- 0.02-1.2A running
Heat Current- 0.02-1.2A running
Sensor Element- Thermistor
Operating Humidity Range- (% RH) 5 to 90% RH (non-condensing)
Comments- EASY-TO-SEE model with Large raised markings and a click at each 2 degree setpoint change
Voltage- 20 to 30 Vac
Customers most agreed on the following attributes:
Comments about Honeywell Round Easy-To-See Mercury Free 1 Heat/1 Cool Thermostat:
This thermostat was easy to install and worked right out of the box. We had no problems with defective units as reported by another reviewer. The click stops and large tactile numbers make it easy to adjust for those with visual problems. A Braille manual is available upon request. Honeywell is to be congratulated for their dedication to making a product that is accessible to blind and low vision users.
[1 of 1 customers found this review helpful]
Comments about Honeywell Round Easy-To-See Mercury Free 1 Heat/1 Cool Thermostat:
Perfect Thermostat for Low Vision Consumers.Large format numerals make it really easy to adjust the temperature and it's really easy to install.
[1 of 1 customers found this review helpful]
Comments about Honeywell Round Easy-To-See Mercury Free 1 Heat/1 Cool Thermostat:
great for older folks needing assistance. Easy for elder folks to understand and use.
[0 of 1 customers found this review helpful]
Comments about Honeywell Round Easy-To-See Mercury Free 1 Heat/1 Cool Thermostat:
Looked ok, but was very clumsy. Face plate easily came off. Purchased multiple units that ended up not working right out of the box, even with professional installation. The gimmick got me but the product sucks. Returned 5 out of 6!
