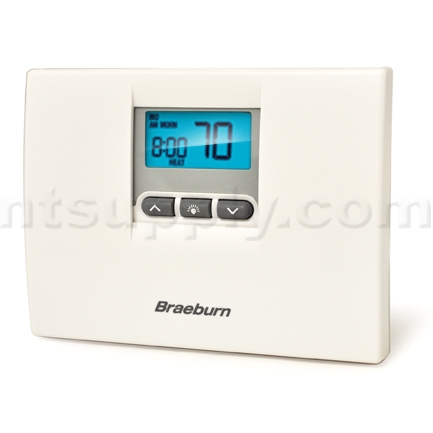

Braeburn Model 2000 1 Heat/1 Cool Programmable Thermostat image

(based on 2 ratings)
Brand: Braeburn
Located in: 1 Heat/1 Cool
Braeburn Model 2000 1 Heat/1 Cool Programmable Thermostat The digital programmable thermostat shall be a Braeburn®, model number 2000, 3.75" high x 4.94" wide x 1.19" deep, powered by two "AA" Alkaline batteries (3.0 Volt DC) with 5-2 day programming. The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv - 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display, front loading battery door and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, filter check monitor, adaptive recovery mode (ARMT) and separate heating and cooling set point program times and temperatures. A front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box. FEATURES: . 5-2 Day Separate Weekday / Weekend Programming . Large Display with Bright Blue Backlight . Battery Powered with Latching Relay Output . Non-Volatile Memory to Maintain User Settings . Filter Check Monitor . Adaptive Recovery Mode (ARMT) . Adjustable Temperature Differential . ESD GuardT Electronic Circuitry . Compressor Short Cycle Protection . Separate Heating and Cooling Set Point Program Times and Temperatures . Temporary Program Override for 4 Hours or UntilNext Set Point . Programmable Extended Hold Mode . Front Access Reset Button . F° / C° Switch . Gas / Electric Fan Switch . Mount to Horizontal Box . Easy Access Front Battery Door . Separate O & B Terminals . Meets ENERGY STAR® and California Title 24 Guidelines SPECIFICATIONS: Dimensions: 3.75" x 4.94" x 1.19" Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 2 amp total maximum load (all terminals) DC Power: 3.0 Volts DC (2 "AA" Alkaline batteries included) Compatibility: Single stage gas, oil or electric systems Single stage heat pump systems 250mv - 750mv millivolt heating systems Control Range: 45° to 90° F (7° to 32° C) Display Range: 40° to 99° F (4° to 37° C) Accuracy: +/- 1° F (+/- .5° C) Temperature Differential: .5°, 1°, or 2° F (.25°, .5°, or 1° C) Storage Temperature: 14° to 140° F (-10° to 60° C) Operating Humidity: 5% to 95% Relative Humidity Interchangeable Sub-Base: Braeburn 1000 Non-Programmable 1 Heat / 1 Cool Terminations: Rc, Rh, B, O, Y, W, G
Review Snapshot®
Avg. Customer Rating:

4.5 stars
(based on 2 reviews)

[2 of 2 customers found this review helpful]


Replaced Breaburn 1000 with 2000
By HomeownerVerified Purchaser from Mpls, MN on 12/15/2009
Pros:
Easy To Adjust, Easy To Install, Intuitive Controls, Precise Controls
Best Uses:
Central Controls, Homes
Describe Yourself:
Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about Braeburn Braeburn Model 2000 1 Heat/1 Cool Programmable Thermostat:

We moved into a new home with a Braeburn 1000 (Non- programmable).
We had a model 2000 in our previous home and appreciated the flexible programming feature. It was an easy replacement; simply transfer the color coded wires to the new unit and screw it onto the existing holes.


Good product at reasonable price
By MartinVerified Purchaser from Lowville on 10/16/2008
Pros:
Easy To Install, Precise Controls
Best Uses:
Homes
Describe Yourself:
Homeowner
Bottom Line:

Comments about Braeburn Braeburn Model 2000 1 Heat/1 Cool Programmable Thermostat:

Allows total control of temperature. Set it and forget it.
